Establish IPsec VPN between Fortigate and Sophos UTM
This to show how to create site-to-site VPN between Fortigate Firewall and Sophos
:Fortigate configuration

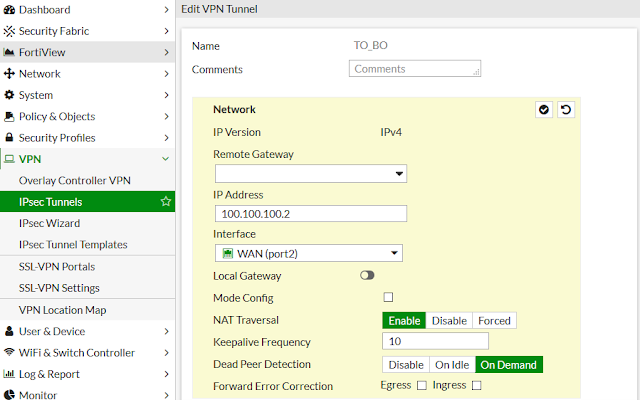

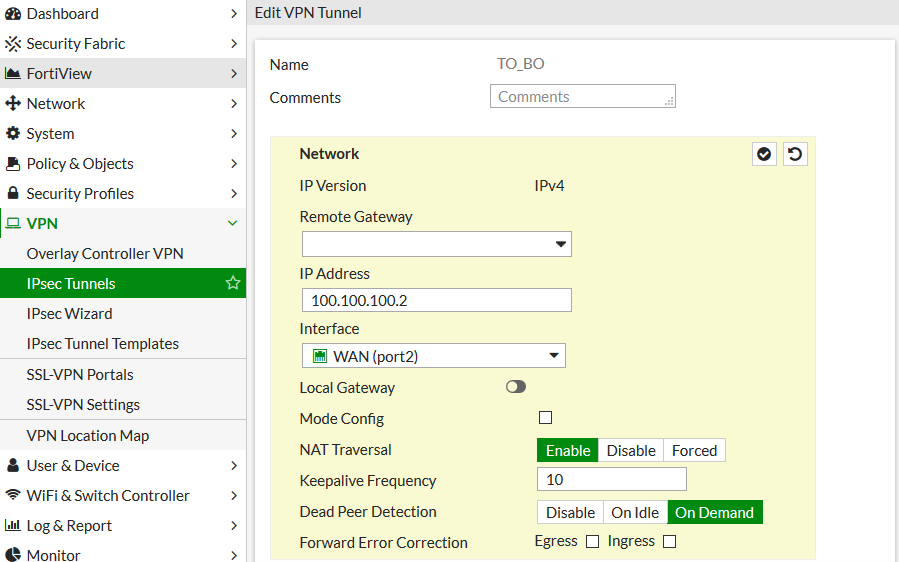

1- To create Tunnel interface , go to VPN >>> IPsec Tunnels
Remote Gateway : Static IP
Remote Gateway : Static IP
IP address : Sophos WAN IP (BRANCH)
Interface: Fortigate WAN Interface(HQ)
NAT Transferal:Enabled
2- On same page we have to chose Authentication
Method : pre-shared key
Mode : Main
key should be same on both sides.
3- Phase 1 settings
Encryption : DES
Authentication : SHA512
DH Groups : 15,14,2
4- Create Phase 2
Local Address : Fortigate LAN Network(HQ).
Remote Address: Sophos LAN Network(Branch).
Authentication and Encryption as Phase 1 settings.
5- Static route ( Remote LAN Network to IP Tunnel interface)
6- Policy from LAN to IP Tunnel interface and from Tunnel interface to LAN.
Sophos configuration :
1- from Site-to-Site VPN >>> IPsec >>> Remote Gateway
Name : To Fortigate (2for)
Gateway Type : initiate connection
Authentication type : preshared key
VPN ID type : IP Address
2- from Site-to-Site VPN >>> IPsec >>> Connections
Name :
Remote Gateway : Remote gateway which is created by step 1.
Local interface : Sophos WAN interface
Policy : should be same on remote side (Fortigate side).
Local Networks : Sophos LAN Network
Policy in sophos as below and you can edit it as you want.
