IPsec VPN Tunnel between Palo Alto and Pfsense Firewall

In this lab will show how to create IPsec VPN  tunnel between palo Alto and Pfsense Firewall.

PaloAlto configuration;

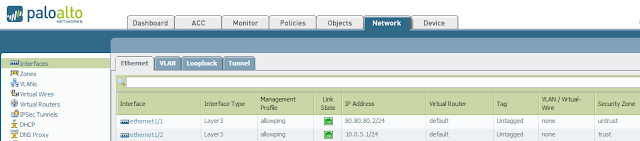

1- Interface configuration

2- Tunnel interface configuration

3-  IKE Gateways

4- IPSec Crypto

5-  IKE Crypto

Verify

Pfsense configuration :


1-  Create Tunnels interface from VPN>>> IPsec>>Tunnels

     Remote Gateway : Palo Alto WAN IP
     Local Subnet: pfsense LAN Network
     Remote Subnet : Palo Alto LAN Network.
     P2 protocol : ESP
     P2 Transforms : 3DES
     P2 Auth : MD5

2-  Add policy to allow traffic on WAN interface : Firewall >> Rules >> WAN

3- Add policy to allow traffic on LAN interface : Firewall >> Rules >> LAN

4- Add policy to allow traffic on IPsec interface : Firewall >> Rules >> IPsec

5-  Create static router : System >> Routing >> Static Routes
